Data Structure, Binary heap for priority queue
17 Feb 2020 | Data Structure개인공부 후 자료를 남기기 위한 목적임으로 내용 상에 오류가 있을 수 있습니다.
잘못된 부분이 있다면 댓글로 남겨주세요! :)
Binary heap for priority queue
- linked list based implementation
- sorted implementation
- Unsorted implementation
- tree based implementation
- Tree should be balanced justify the reason of using trees
- 즉 밸런스가 보장되어야지만 실제 사용에 있어 효용이 나게 된다
Binary heap = Binary tree

Binary tree = 1 parent 2 childs
- shape property: complete tree 모양이 되어야 한다
- heap property: 부모 노드가 자식 노드보다 value 가 더 커야 한다

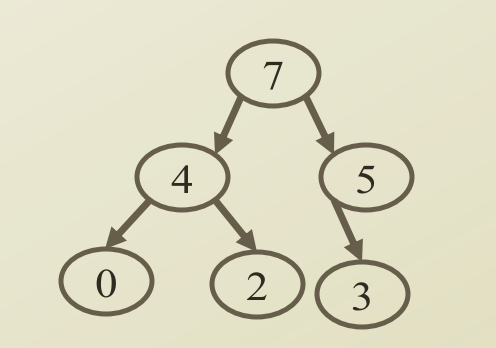

- 위 이미지는 full tree는 아니지만 complete tree는 맞다

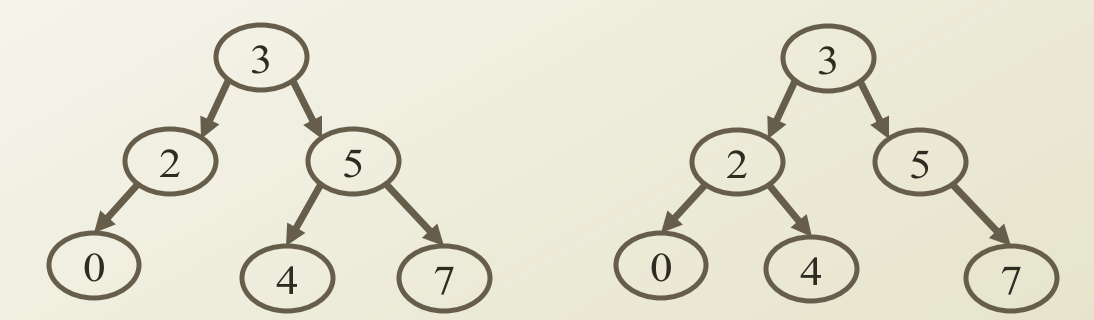

- 위 이미지는 complete tree 자체가 아니다

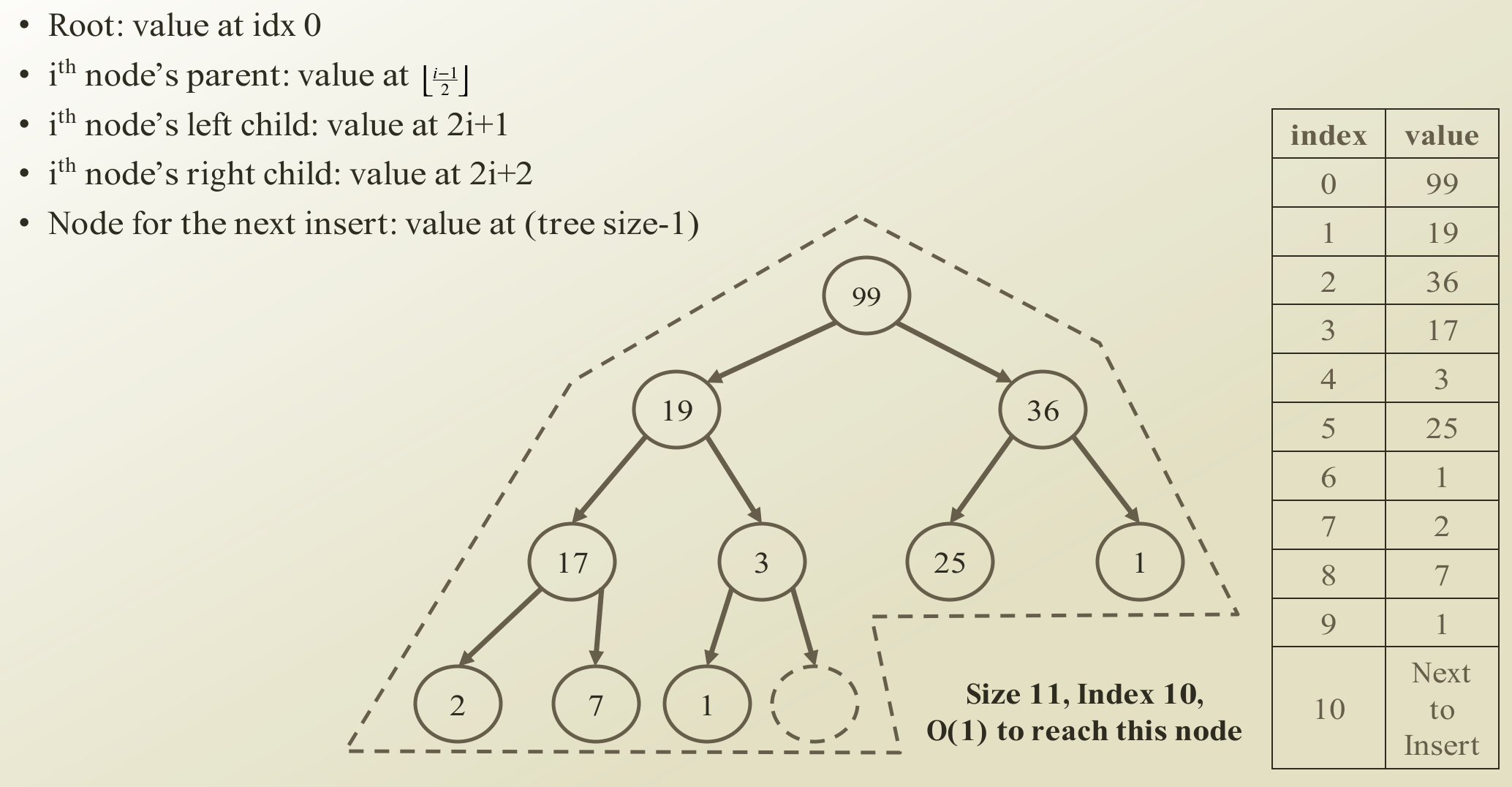

Structure of binary heap using reference

Binary heap 은 array 로도 구현이 가능하지만 reference structure로도 구현 가능하다.

Insert operation of binary heap
- Percolate-up
- 우리나라 용어로는 ‘삼투현상’, 뿌리에서부터 나무로 올라간다는 의미
- 즉 자식 노드부터 root 로 올라간다는 의미
- 어떻게 구현할까?
- 삽입하려는 value 들을 다음 노드에 넣어준다.
- 어떻게 다음 노드가 무엇인지 아는가?
- structed property -> complete tree 조건을 지켜야하기 때문에
- heap property : 부모 노드 > 자식 노드 -> 이 조건이 안맞는 경우 percolate-up 을 실행
- 부모노드보다 새로 삽입되는 노드가 큰지 비교
- heap property is broken 한 상황이고
- exchange the two values 하게 된다
- 삽입하려는 value 들을 다음 노드에 넣어준다.
def enqueue_with_priority(self, value, priority):
self.arr_priority[self.size] = priority
self.arr_value[self.size] = value
self.size = self.size + 1
self.percolate_up(self.size - 1)
def percolate_up(self, index_percolate):
if index_percolate == 0:
return
parent = int((index_percolate-1)/2)
if self.arr_priority[parent] < self.arr_priority[index_percolate]:
self.arr_priority[parent], self.arr_priority[index_percolate] = self.arr_priority[index_percolate], self.arr_priority[parent]
self.arr_value, self.arr_value[index_percolate] = self.arr_value[index_percolate], self.arr_value[parent]
self.percolate_up(parent)
Delete operation of binary heap
- Percolate-down
- 제일 가장 큰 value 는 root
- root 가 없어진다는 가정을 하는 경우 complete 구조가 깨짐
- 가장 최근의 노드 value를 노드 value로 올림 → 이런경우 heap property 를 만족시키지 못함
- 어떻게 구현할까?
- root 노드 값
- last node value 를 복사
- last node value 와 childer node 비교
- 어떤거와 비교? childer node 중에서 가장 큰 노드로 변경
def dequeue_with_priority(self):
if self.size == 0:
return ''
ret_priority = self.arr_priority[0]
ret_value = self.arr_value[0]
self.arr_priority[0] = self.arr_priority[self.size-1]
self.arr_value[0] - self.arr_value[self.size-1]
self.size = self.size + 1
self.percolate_down(0)
return ret_value
def percolate_down(self, index_percolate):
if 2 * index_percolate + 1 >= self.size :
return
else:
left_child = 2 * index_percolate + 1
left_priority = self.arr_priority[left_child]
if 2 * index_percolate + 2 >= self.size:
right_priority = -99999
else:
right_child = 2 * index_percolate + 2
right_priority = self.arr_priority[right_child]
if left_priority > right_priority:
bigger_child = left_child
else:
bigger_child = right_child
if self.arr_priority[index_percolate] < self.arr_priority[bigger_child]
self.arr_priority[index_percolate], self.arr_priority[bigger_child] = self.arr_priority[bigger_child], self.arr_priority[index_percolate]
self.arr_value[index_percolate], self.arr_value[bigger_child] = self.arr_value[bigger_child], self.arr_value[index_percolate]
self.percolate_down[bigger_child]
- rigth 가 없는 경우 left가 존재해야한다 (complete 구조이기 때문)
